Accurate Weighing
From Ultralight To Heavyweight

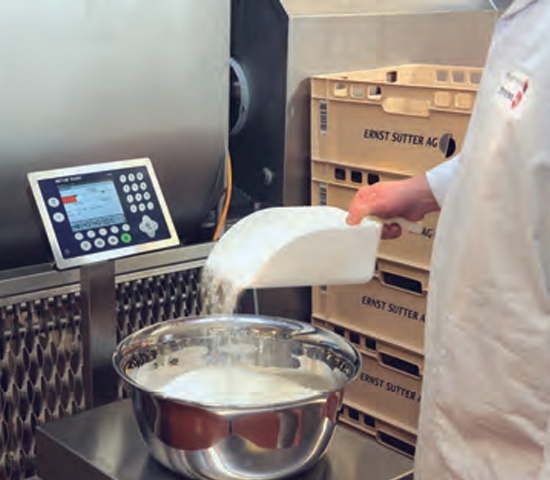

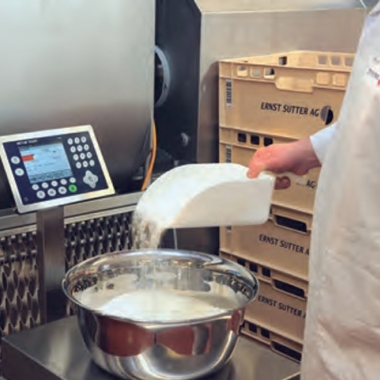

Accurate weighing helps you manage raw materials, ensure compliance with regulations and improve your product quality. For bench- and floorscale applications

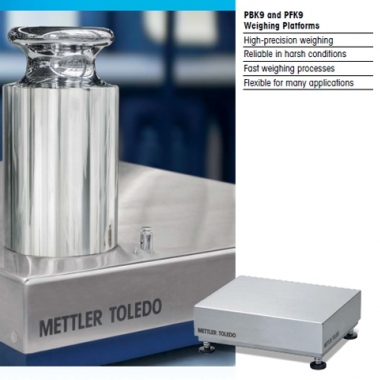

that require reliability with the best accuracy available, the PBK9 and PFK9 Weighing Platforms provide an outstanding performance.
The range of platforms, with capacities from 0.6 to 3,000 kilograms at resolutions of up to 750,000 divisions, are useful for many applications.
Outstanding Accuracy
Thanks to its innovative measuring technology, the PBK9 and PFK9 Weighing Platforms ensure industry-leading metrological performance.
With a resolution of up to 750,000 divisions (30,000e legal-for-trade approved), the weighing platform is ideally suited for all weighing processes in which quality is critical and tolerances need to be minimized.
Reliable Performance
There is no need to worry about environmental impacts to your scale’s weighing performance.
The PBK9 and PFK9 Weighing Platforms notify the operator when recalibration or adjustments are necessary due to environmental changes.
Intelligent algorithms automatically adjust the platform and reduce the time and costs associated with regular testing.
Smart Load-Cell Technology
Accurate and Robust
The load cell, with Monobloc technology, is at the core of the PBK9 and PFK9 Weighing Platforms.
Advanced technology guarantees the highest precision and reliability.
The robust load-cell housing features integrated overload protection and durable mechanical interfaces.
This ensures stable weight values even under harsh environmental conditions and for many years of intensive use.
The housing and membrane design ensure excellent measurement sensitivity and provide IP66/IP68 ingress protection against water and dust at the same time.
Automated calibration with a built-in calibration weight and plug-in cables allow for easy maintenance.
Hazardous Environments
When working in a hazardous environment, safety is key.
The PBK9 and PFK9 Weighing Platforms are approved for the use in hazardous areas
for Category 3 and Division 2 for top performance in gaseous and dusty environments.
The load cell and its cable undergo stress tests to guarantee safe performance and ensure safe operation.
Approved and
Non-approved Applications
Peak performance and compliance to the OIML and NTEP regulations safeguard you against profit losses in any legal-for-trade application.
The weighing platforms are available with the maximum resolution of up to 750,000 divisions, if your processes do not depend on Weights and Measures regulations.
