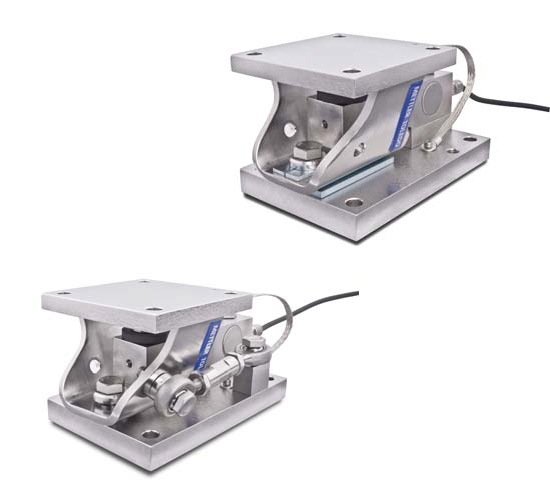

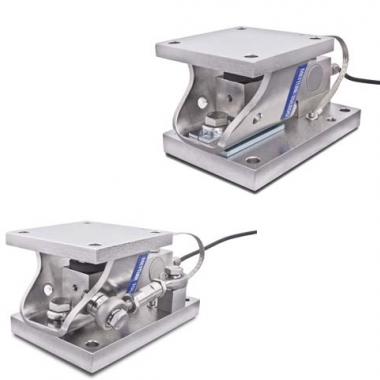

SWB PowerMount ™
features ensure correct scale system installation, right from the start. Weigh
modules do not compromise on safety – all safety features are built-in. The rocker pin design provides the highest level of weighing accuracy. Service features,
including SafeLock™ provide easy and trouble free
installation. Features:
• Integrated lift-off protection
• Vertical safety down-stop
• Full 360° integrated checking
• Ground strap – welding protection
• SafeLock™ – Weigh module locked for installation
• SafeLock™ – Load cell protected for installation
• Dual stabilizer option
• All load cells with IP68/IP69K and fully stainless steel
• Global approvals standard on each load cell
• OIML C3/NTEP III M n:5, OIML C6/NTEP III M n:10 or C10
• Zinc plated or stainless steel mounting hardware
• CalFree™ Plus: Precise calibration on a finger tip

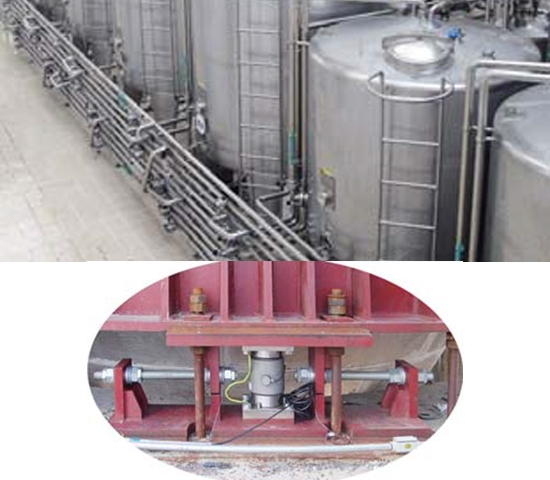

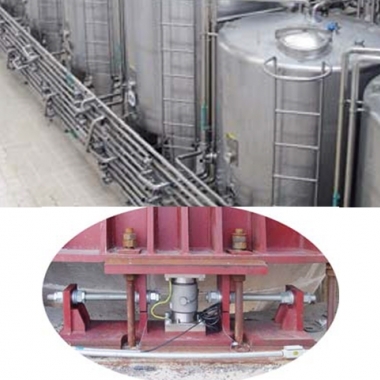

Tank Weighing
SWB605 PowerMount ™ weigh modules offer rugged construction and many
features for easy installation and accurate and reliable tank weighing. Standard
lift-off bolt copes with tipping forces while vertical safety down-stop provides
additional safety.
Conveyors and Mixers
Weigh modules are also designed for dynamic-loading applications such as
conveyors, mixers and blenders. SWB505 MultiMount ™ / SWB605 PowerMount ™
provides 360° checking for ease of installation and maximum safety. The
rocker pin restores the top plate to its ideal position to maintain accurate, repeatable weight.
