PUA589lift Low Profile Scale
For effective cleaning in sanitary applications

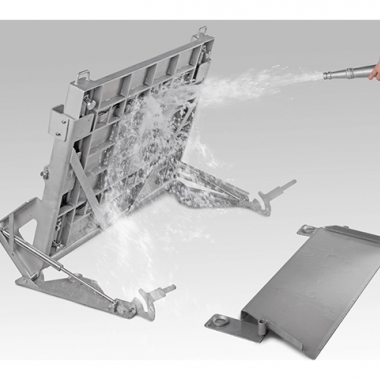

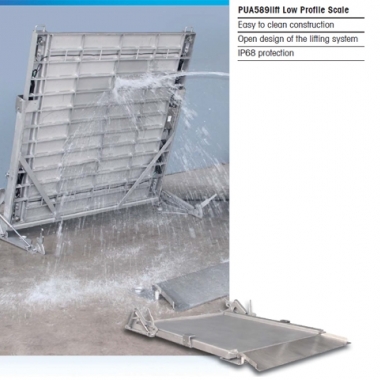

The PUA589lift low profi le scale allows quick and easy wash down in sanitary

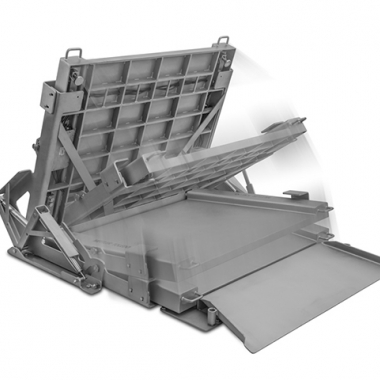

applications. Lifting the front handles tilts the entire scale up to provide complete access for cleaning the floor and underside of the scale.
A pair of built-in gas springs enable one person to lift the scale manually with minimal effort. Designed for easy cleaning, the scale is manufactured with smooth stainless steel surfaces and open design of lifting system that eliminate the
corners and gaps where contaminants can collect. There is no pit to clean out
and no need to recalibrate the scale after cleaning.

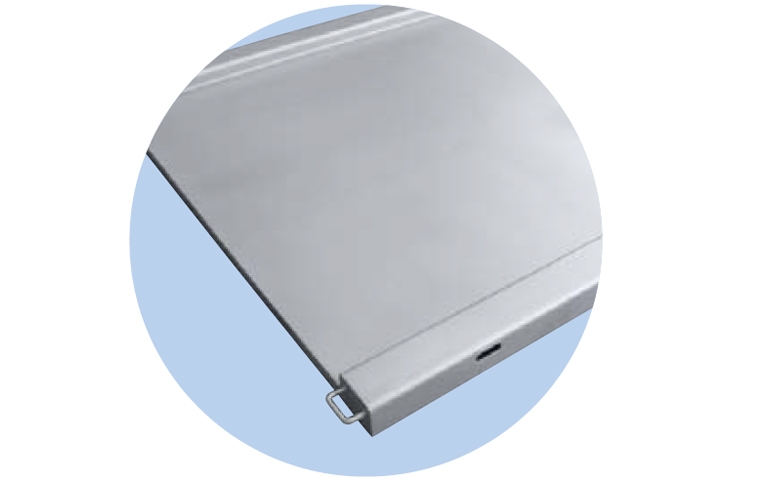

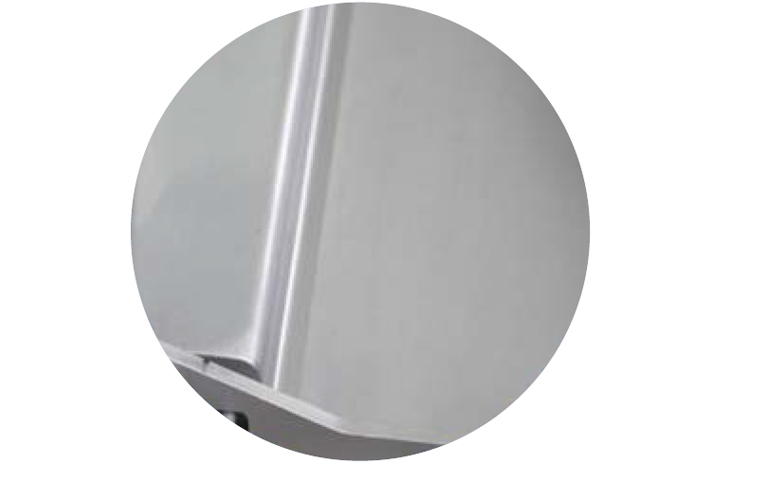

Smooth surface withglass blast surface finish
Open design of the lifting system

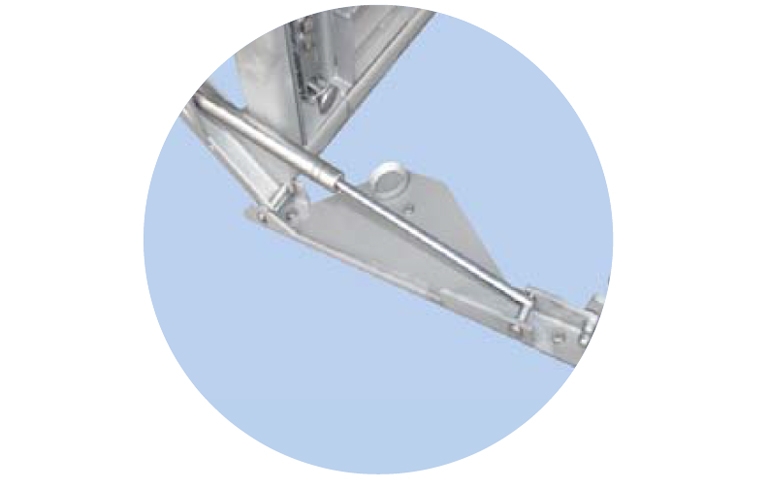

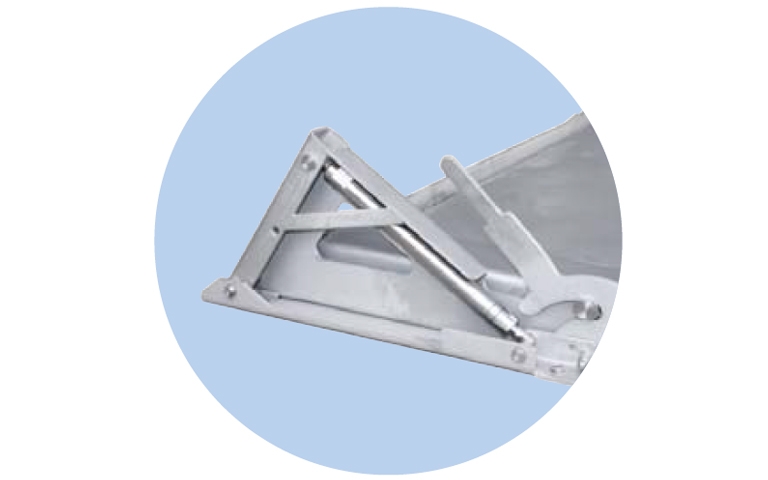

High quality gas spring with up to 10,000 cycles

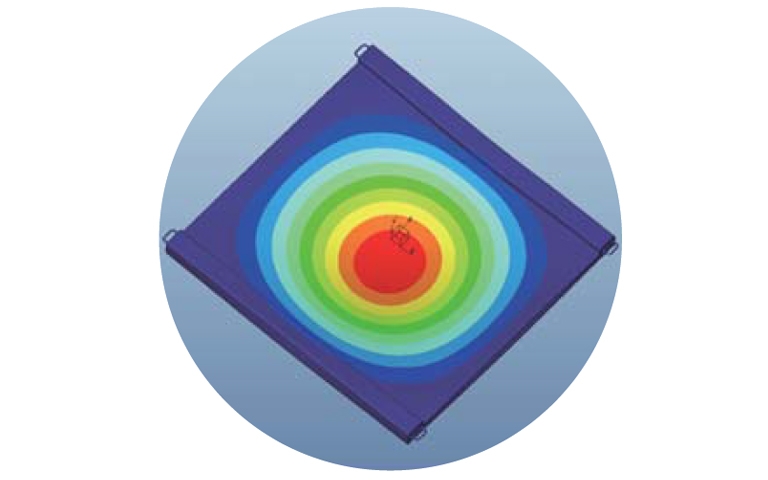

Heavy capacity platform with up to 800k cycles
Low profi le allows smooth driving via a ramp

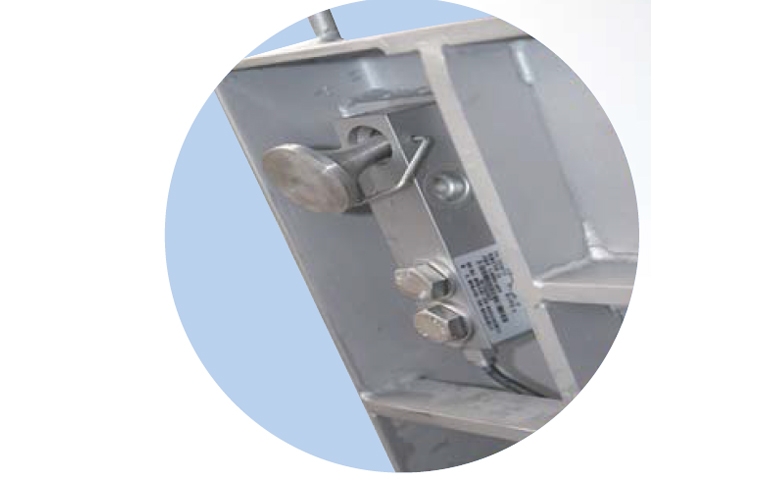

Each load cell has a rocker foot suspension that automatically aligns load forces for accurate and repeatable weighing

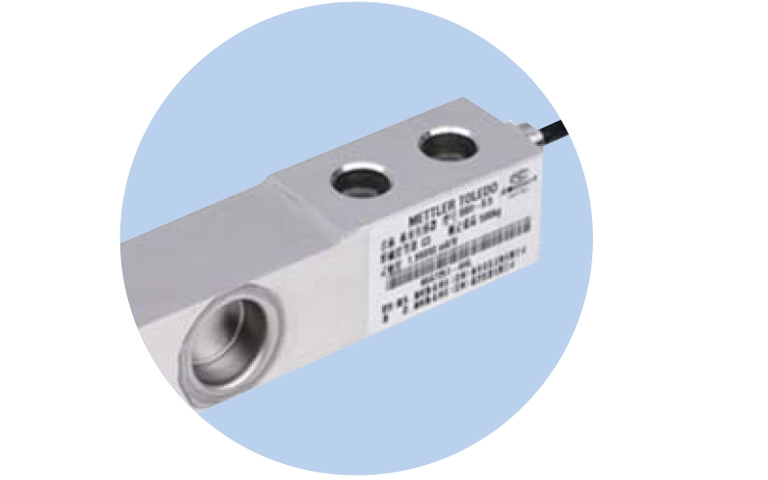

Hermetically sealed load cells with special coating, maximum protection in wet and corrosive environments.

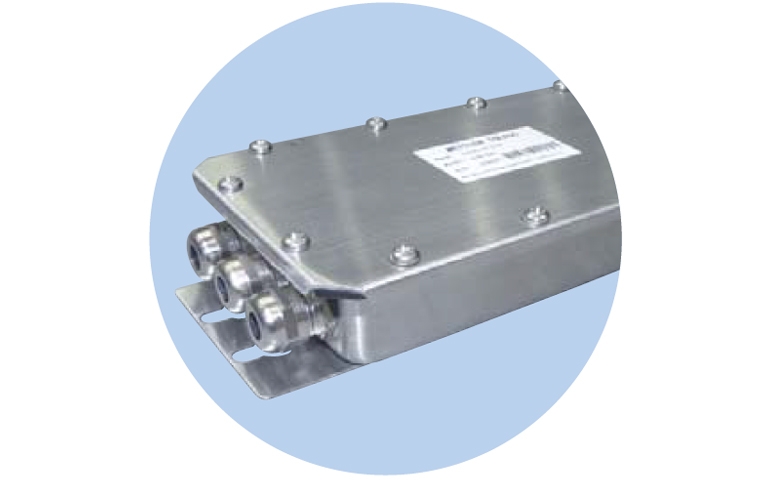

Junction box, maximum protection in wet and corrosive environments.

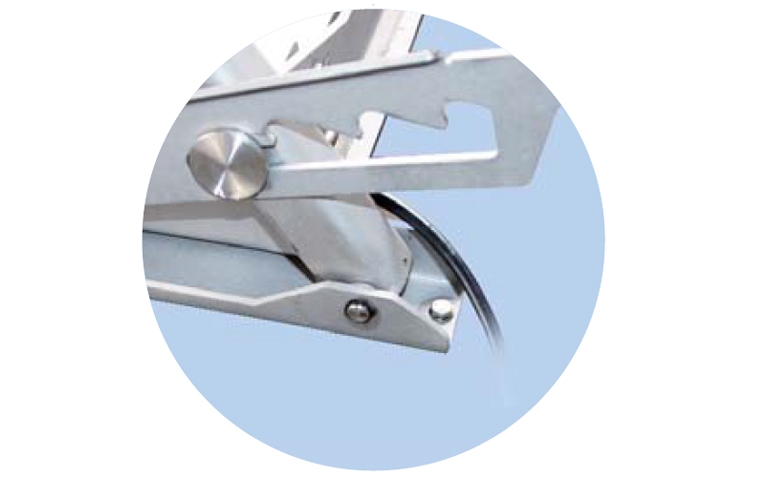

For a maximum of safety, 3 position mechanical lock
